Working Hours:≥1000 hours Condition: Used
Warranty: 18 Months Year: 2019-2023
| Model NO. | CAT 329D |
|---|---|
| Model | CATERPILLAR: 305 306 320B 320C 320D 320GC 325D 330B 330C 330D 315D 329D 336 |
| Bucket Capacity | >1.5m³ |
| Certification | CE, ISO9001: 2000 |
| Condition | |
| Core Components | Engine, Motor, Pump, Gearbox, Pressure Vessel |
| Engine | C7 Acert |
| Location | Shandong/Shanghai, China |
| Operating Weight | 20Tons |
| Size | medium-sized |
| Supply Ability | 50unit/Month |
| Transport Package | by Bulk Ship or Container |
| Working Hours | 1000hrs |
| Trademark | caterpillar |
| Engine power | 152 kW |
| Displacement | 7.2 l |
| Revolutions at max torque | 1800 rpm |
| Max. Reach horizontal | 11.15 m |
All accepted
Available
Sea or Land Freight

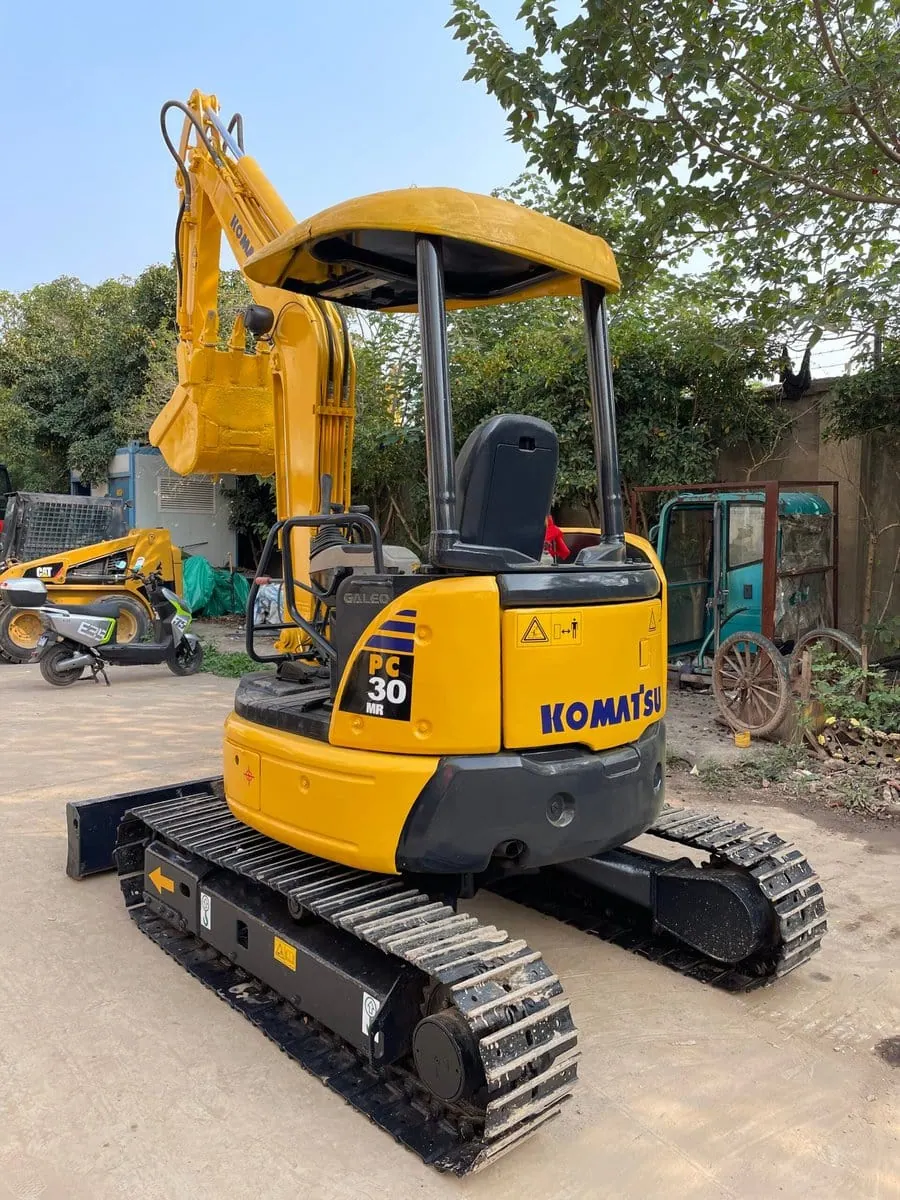

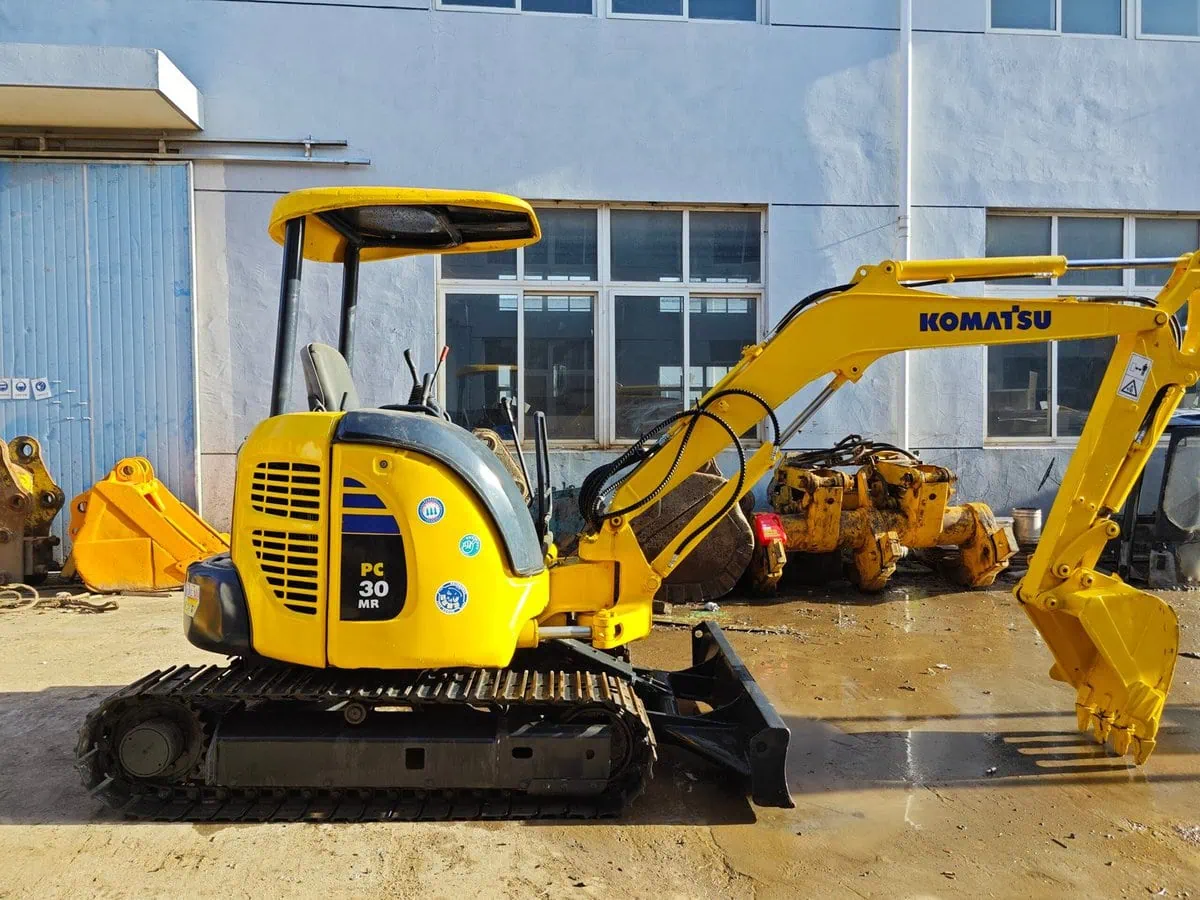

The Used PC30 Komatsu Mini Digger For Sale is a compact hydraulic excavator designed for versatility and efficiency in tight spaces. It is powered by a Komatsu 3D84-1B engine, delivering a gross power of 28.7 hp (21.4 kW) at 2400 rpm, with a displacement of 100.2 cubic inches (1.6 liters) and featuring three cylinders.
Key features of the Komatsu PC30MR-1 include:
The PC30MR-1 also offers a good combination of reach and lifting capacity, with a maximum digging depth of 9.1 ft (2760 mm), a maximum reach along the ground of 16.1 ft (4910 mm), and a maximum loading height of 11.6 ft (3530 mm). It has a short tail swing and a small swing radius, which makes it suitable for work in narrow spaces without worrying about rear swing impact.
For maintenance, the PC30MR-1 offers easy access to daily inspection points with wide-opening engine bonnets and a tilting cab for more significant maintenance tasks. The side-by-side cooling section is designed for easy cleaning, and the large-sized fuel filler reduces fuel flow-back.
Komatsu also provides a range of attachments for the PC30MR-1, such as hydraulic breakers and crushers, to suit various applications. Additionally, the KOMTRAX system delivers energy-saving operation reports and equipment management support, helping to run the business efficiently.
The Used PC30 Komatsu Mini Digger For Sale is a testament to Komatsu’s commitment to quality, reliability, and innovation in compact hydraulic excavators, making it an excellent choice for a wide range of tasks in confined spaces.
| Specification Category | Description |
|---|---|
| Model | Used PC30 Komatsu Mini Digger For Sale |
| Engine | Komatsu 3D88E-7, water-cooled, 4-cycle direct injection |
| Gross Horsepower | 18.2 kW (24.4 HP) at 2200 rpm |
| Net Horsepower | 17.4 kW (23.3 HP) at 2200 rpm |
| Operating Weight | 3150 kg (Canopy) / 3300 kg (Cab) |
| Bucket Capacity | 0.035 – 0.11 m³ |
| Overall Length | 4560 mm (with standard arm) / 4825 mm (with long arm) |
| Overall Width | 1550 mm |
| Overall Height | 2520 mm |
| Tail Swing Radius | 870 mm |
| Ground Clearance | 305 mm (minimum) |
| Track Length on Ground | 1650 mm |
| Track Gauge | 1250 mm |
| Shoe Width | 300 mm |
| Boom Length | 2285 mm (standard) / 2540 mm (long) |
| Arm Length | 1240 mm (standard) / 1370 mm (long) |
| Max. Digging Depth | 2760 mm (standard arm) / 3110 mm (long arm) |
| Max. Reach at Ground Level | 4910 mm (standard arm) / 5170 mm (long arm) |
| Travel Speed (High/Low) | 4.6 km/h / 2.5 km/h |
| Max. Traction Force | 33.2 kN (3400 kgf) |
| Hydraulic System | Closed-center Load Sensing System (CLSS) |
| Auxiliary Hydraulic Flow | Standard |
| Cab Features | Spacious with ergonomic controls, sliding door (optional) |
| Maintenance | Easy access to daily checks, tilt-up floor for major service |
| Safety | Two-post ROPS and OPG canopy, seat belt |
| Optional Equipment | Air conditioning, heater, larger cab for added comfort |
| Used Excavator | Caterpillar: 305, 306, 307, 312, 313, 315, 318, 320, 321, 323, 325, 326, 329, 330, 336, 340, 345, 349(From B to D, and the latest model GC Series) Komatsu: PC20, PC30, PC35, PC55, PC60, PC70, PC100, PC120, PC130, PC160, PC200, PC210, PC220, PC230, PC240, PC270, PC300, PC350, PC360, PC400, PC450, PC490 Hitachi: EX60, EX100, EX120, EX200, EX300, ZX55, ZX60, ZX70, ZX120, ZX200, ZX240, ZX270, ZX300, ZX350, ZX470 Kobelco: SK50, SK55, SK70, SK75, SK135, SK200, SK210, SK230, SK250, SK260, SK350 Doosan: DH55, DH60, DH80, DH150, DH200, DH220, DH225, DH300, DH420, DH140W, DH150W, DH210W Hyundai: R60, R80, R150, R215, R225, R265, 210W-9S Volvo: EC55, EC60, EC80, EC140, EC210, EC240, EC290, EC360, EC380, EC460, EC480 |
| Used Wheel Loader | CAT: 910, 936, 938, 950G, 966H, 972, 980(From C to H) Komatsu: WA300, WA320, WA350, WA380, WA400, WA420, WA450, WA470, WA500, WA600 SDLG: LG936, LG953, LG956, LG958, LG968 LIUGONG: 850H, CLG856H Hyundai: 130w, 150w, 200, 210, 220, 225, 290, 305, and more. |
No matter if you need excavators or loaders for construction sites, excavation projects, or other engineering purposes, we have suitable options. Our products undergo professional refurbishment, ensuring they are delivered in good working condition. Feel free to contact us anytime for more detailed information and inquiries.
Our machines have been exported to over 30 countries. By offering a range of delivery methods tailored to your needs, HIOSEN ensures that your machinery is delivered quickly, safely, and cost-effectively. Whether you require the protection of containers, the efficiency of bulk cargo shipping, the convenience of Ro-Ro transport, or the flexibility of flat rack shipping, we have the expertise and resources to meet your transportation needs with precision and reliability. Partner with HIOSEN for efficient delivery solutions that keep your projects on track and your operations running smoothly. Contact us now to get a solution for your projects.
We are honored to have welcomed numerous customers to tour our factory. By experiencing our production processes and quality control firsthand, they gained deeper insights into our professional capabilities and exceptional service. Each visit has not only strengthened the trust and collaboration between us and our customers but also showcased our leading position and technical expertise in the industry. Here are some highlights and genuine feedback from our customer visits. Welcome to learn more.
Our customers’ satisfaction is the cornerstone of our success. After purchasing our machinery, many of our clients have shared their experiences, praising the performance, reliability, and value our products bring to their projects.
