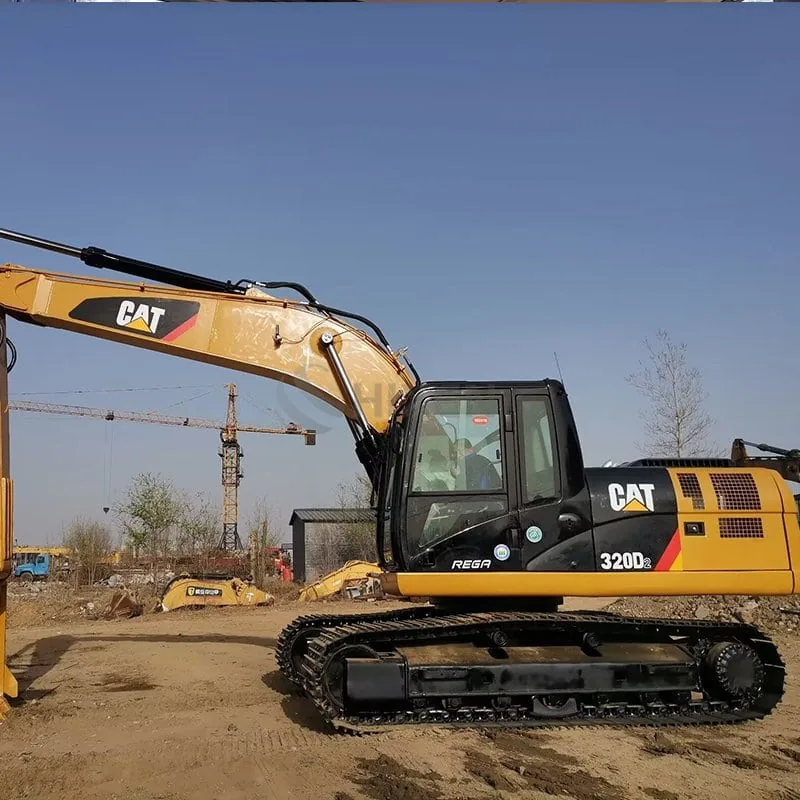

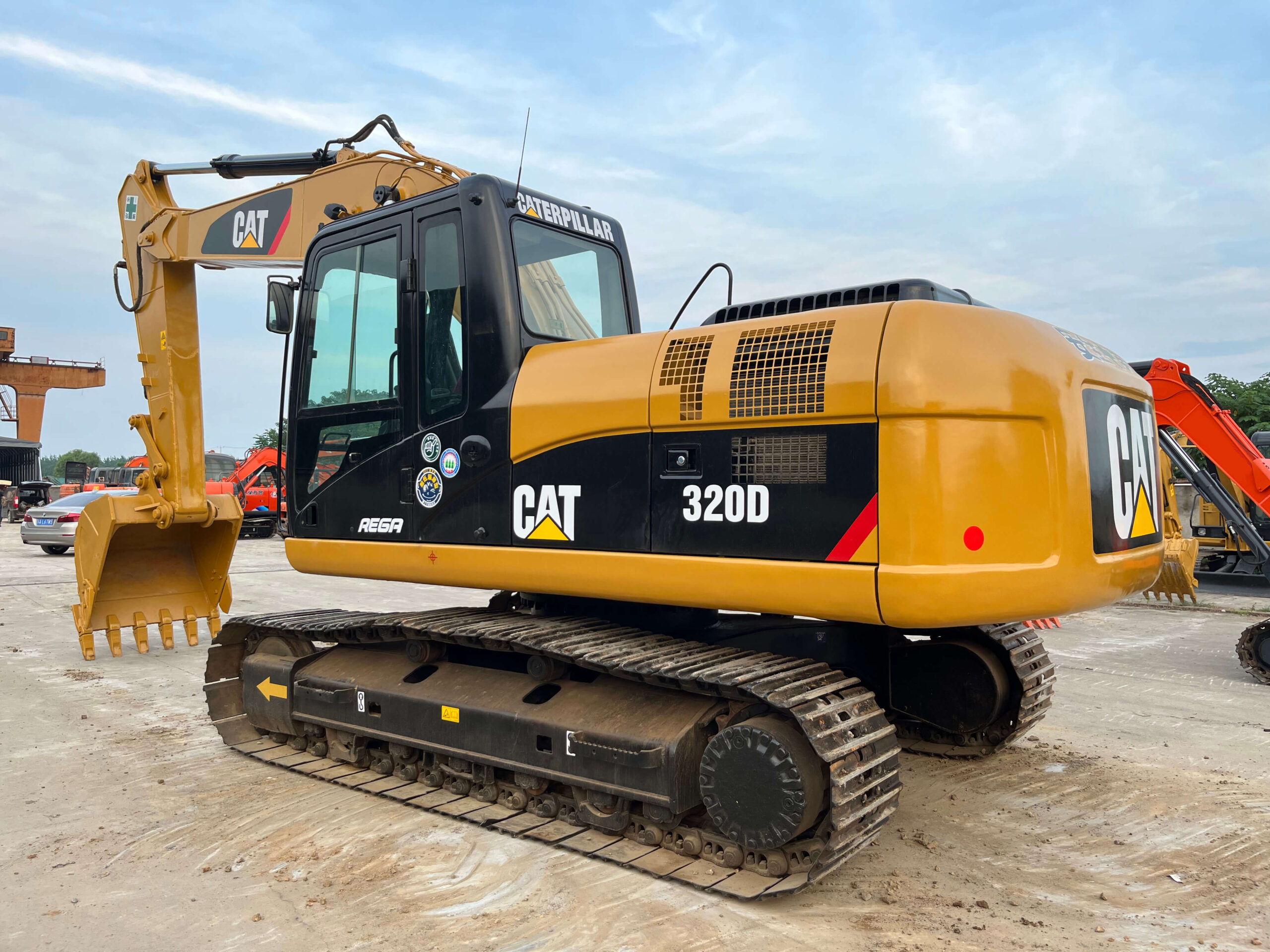

Used Caterpillar Excavator CAT 320 Excavator Price For Sale

The CAT 320 excavator price is a medium-sized hydraulic excavator produced by Caterpillar Inc. Here are some key features and descriptions of the CAT 320 excavator:

Engine:
- The CAT 320 excavator price is equipped with a Cat® C4.4 twin-turbo diesel engine, offering three selectable power modes: Power mode, Smart mode, and Economy mode.
- The engine features automatic engine speed control and automatic engine idle shutdown.
- It is capable of operating at altitudes up to 3000 meters (9,842.5 feet) without derating the engine power.
- It has a high ambient cooling capability of up to 52°C (125°F) and low-temperature start capability at -32°C (-25°F).
Hydraulic System:
- The hydraulic system includes boom and stick regeneration circuits, electronic main control valve, automatic hydraulic oil preheat, automatic dual-speed travel, and more.
- The system also features sliding joysticks and series-type electronic main pumps.
Cab:
- Standard equipment includes a ROPS cab, a high-resolution 254 mm (10-inch) LCD touch screen monitor, automatic dual-stage air conditioning, adjustable-height console, and more.
- The cab also comes with a heated air suspension seat, 12V DC power outlet, and a Bluetooth radio.
Safety and Maintenance:
- The CAT 320 excavator price offers various safety and maintenance features such as Cat Command (remote control), 2D E-Fence (electronic fencing), automatic hammer stop, rear and right-side view cameras, etc.
- All daily maintenance points are accessible at ground level, eliminating the need to climb on the excavator.
Technology and Automation:
- The CAT 320 can be equipped with Cat Grade technology, which combines advanced guidance and optional automated machine control to increase efficiency and job site productivity.
- Cat Payload allows for in-motion weighing of material, enhancing loading efficiency and job site productivity.
Environmental Features:
- The CAT 320 meets U.S. EPA Tier 4 Final and EU Stage IV emission standards and requires the use of ULSD (Ultra Low Sulfur Diesel) or blends with lower carbon intensity fuels.
Operator Comfort:
- The cab design provides excellent visibility, including smaller cab pillars, larger windows, and a flatter engine hood design.

Designed for high performance, low fuel consumption, and high operator comfort, the CAT 320 excavator also meets stringent environmental standards.

CAT 320 Excavator Price CAT 320 Excavator Chart:

Specification	Details
Engine Model	Cat® C7.1
Net Power (ISO 9249)	117 kW (157 hp)
Engine Power (ISO 14396)	118 kW (158 hp)
Bore	105 mm (4 in)
Stroke	135 mm (5 in)
Displacement	7.01 L (428 in³)
Biodiesel Capability	Up to B20
Swing Speed	11.3 rpm
Maximum Swing Torque	82 kN·m (60,300 lbf-ft)
Operating Weight	22,000 kg (48,500 lb)
Standard Track Shoe Width	790 mm (31 in)
Optional Track Shoe Width	600 mm (24 in)
Number of Shoes (each side)	49
Number of Track Rollers (each side)	8
Number of Carrier Rollers (each side)	2
Gradeability	35°/70%
Maximum Travel Speed	5.7 km/h (3.5 mph)
Maximum Drawbar Pull	205 kN (45,996 lbf)
Main System – Maximum Flow – Implement	429 L/min (113 gal/min)
Maximum Pressure – Equipment – Normal	35,000 kPa (5,075 psi)
Maximum Pressure – Equipment – Heavy Lift Mode/Auto Dig Boost	38,000 kPa (5,510 psi)
Maximum Pressure – Travel	34,300 kPa (4,974 psi)
Maximum Pressure – Swing	27,500 kPa (3,998 psi)
Boom Cylinder – Bore	120 mm (5 in)
Boom Cylinder – Stroke	1260 mm (50 in)
Stick Cylinder – Bore	140 mm (6 in)
Stick Cylinder – Stroke	1504 mm (59 in)
Bucket Cylinder – Bore	120 mm (5 in)
Bucket Cylinder – Stroke	1104 mm (43 in)

If you want more information of CAT 320 Excavator Price, contact with us now!

Containers: For smaller shipments or machinery that requires extra protection during transit, we utilize containers. This method ensures that your equipment is securely packed and protected from the elements, minimizing the risk of damage and ensuring that it arrives at its destination in pristine condition.
Bulk Cargo: When shipping larger quantities of machinery or heavy equipment, we often opt for bulk cargo shipping. This method is cost-effective and efficient, allowing us to transport multiple machines in a single shipment, thereby reducing shipping costs and delivery times.
Ro-Ro (Roll-On/Roll-Off): For wheeled machinery such as wheel loaders and bulldozers, we often utilize Ro-Ro shipping. This method involves driving the machinery onto the vessel at the port of origin and driving it off at the destination port, streamlining the loading and unloading process and minimizing handling time.
Flat Rack: For oversized or irregularly shaped machinery that cannot be accommodated in standard containers or on Ro-Ro vessels, we offer flat rack shipping. This method involves securing the machinery to a flat rack container, providing flexibility and ensuring safe transport for even the most challenging cargo.
