Horas de trabajo: ≥1000 horas Condición: Usado
Garantía: 18 Meses Año: 2019-2023

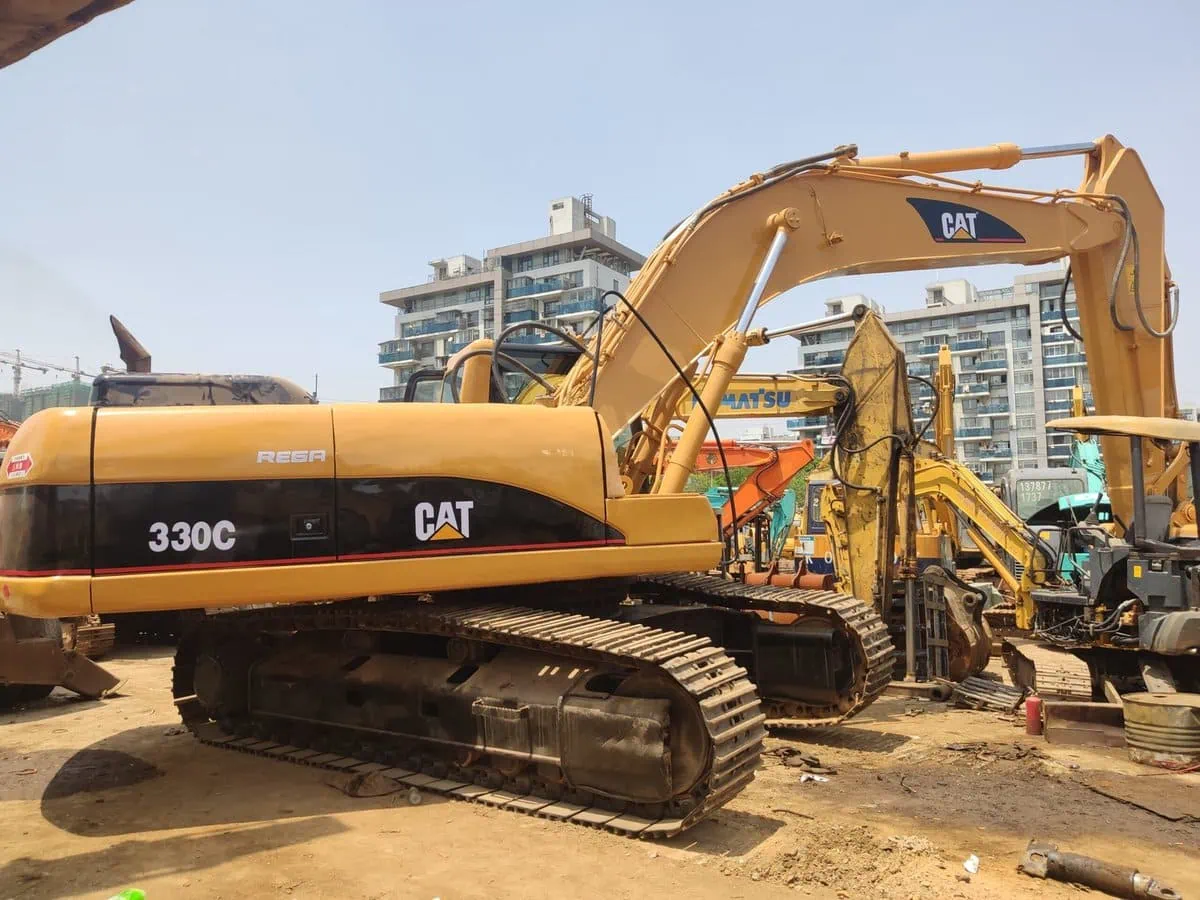

| N º de Modelo. | CAT 330C |
|---|---|
| Modelo | ORUGA: 305 306 320B 320C 320D 320GC 325D 330B 330C 330D 315D 329D 336 |
| Capacidad del cucharón | >1,5m³ |
| Certificación | CE, ISO9001:2000 |
| Condición | |
| Componentes principales | Motor, motor, bomba, caja de cambios, recipiente a presión |
| Motor | C9 ATAC |
| Ubicación | Shandong/Shanghái, China |
| Peso operativo | 32.4 t |
| Tamaño | talla media |
| Capacidad de suministro | 50 unidades/mes |
| Paquete de transporte | por barco a granel o contenedor |
| Horas Laborales | 1000 horas |
| Marca comercial | oruga |
| Dimensiones | 11201×3429×3734mm |
| Ancho de vía | 600 milímetros |
| Máx. llegar a la horizontal | 10.31 m |
| Tear-out force | 186 kN |
| potencia del motor | 181 kW |
| Revoluciones al par máximo | 1800 rpm |
| Desplazamiento | 8.8 l |
Todos aceptados
Disponible
Transporte Marítimo o Terrestre
The Used CAT 330 Excavator For Sale is a hydraulic excavator designed for heavy-duty operations and is known for its reliability, comfort, and productivity 5. It is powered by a Cat® C7.1 engine that complies with U.S. EPA Tier 4 Final, EU Stage V, and other international emission standards, offering 151 kW (202 hp) of engine power and an operating weight ranging from 29,700 kg to 30,700 kg depending on the configuration.
This model offers a balance of performance and cost-effective operation, with features that help reduce fuel consumption by up to 12% compared to previous models 5. The excavator comes with two operating modes: Power Mode for high-demand applications and Smart Mode for optimal fuel efficiency in various applications.
The 330 GC has an ISO-certified ROPS cab that provides excellent visibility and a comfortable working environment for the operator, featuring large windows, a flat engine hood design, and reduced cab pillars for a wider field of view 5. It also includes a keyless push-button engine start for added security and convenience, as well as customizable joysticks and a high-resolution touchscreen monitor for easy control of machine settings.
The hydraulic system of the CAT 330 is advanced, with an electronic main control valve, electric boom and stick regeneration circuits, and automatic hydraulic oil warm-up to enhance performance and efficiency 6. The machine also features a range of safety and security measures, including an auto hammer stop, rearview and side-view cameras, and secure start with PIN code access.
For attachment versatility, theUsed CAT 330 Excavator For Sale can be equipped with a variety of Cat Attachments, such as quick couplers, grapples, rakes, vibratory plate compactors, multi-processors, secondary pulverizers, buckets, rippers, hydraulic hammers, thumbs, and shears 5. The Cat PL161 attachment locator is available for tracking and managing attachments efficiently.
Maintenance is made easier with synchronized and extended maintenance intervals, consolidated filter locations, and ground-level access to daily maintenance checkpoints, contributing to lower maintenance costs 5. The Cat Link telematics technology, including Product Link™ and VisionLink®, provides valuable data for managing the fleet and the job site effectively.
Dimensions of the Used CAT 330 Excavator For Sale include a maximum digging depth of 7.26 meters, a maximum reach at ground level of 10.69 meters, and a maximum cutting height of 10.02 meters 5. The fuel tank capacity is 474 liters, and the hydraulic system, including the tank, has a capacity of 310 liters.
In summary, the Used CAT 330 Excavator For Sale is a robust machine designed to deliver powerful performance while prioritizing operator comfort, safety, and fuel efficiency, making it a reliable choice for a variety of heavy-duty applications.
The Used CAT 330 Excavator For Sale is a powerful and versatile machine designed to handle a variety of tasks with efficiency and reliability,its key specifications in a tabular format:
| Categoría de especificación | Descripción | Value | Unit |
|---|---|---|---|
| Potencia del motor | Poder de la red | 151 kW | 202 hp |
| Potencia bruta | 152 kilovatios | 204 hp | |
| Operating Weights | With standard undercarriage and HD bucket | 30,100 kg | 66,400 lb |
| With long undercarriage and GDX bucket | 27,800 kg | 61,300 lb | |
| Velocidad de giro | 11.5 rpm | ||
| Maximum Swing Torque | 105 kN·m | 77,370 lbf-ft | |
| Track Dimensions | Standard track shoes width | 600 milímetros | 24 in |
| Optional track shoes width | 800 mm | 31 in | |
| Drive | Maximum travel speed | 5.3 km/h | 3.3 mph |
| Maximum drawbar pull | 248 kN | 55,753 lbf | |
| Sistema hidráulico | Main system – max flow – Implement | 560 L/min | 148 gal/min |
| Max pressure – Equipment – Normal | 35,000 kPa | 5,075 psi | |
| Max pressure – Swing | 28,400 kPa | 4,120 psi | |
| Service Refill Capacities | Fuel tank capacity | 474 L | 125.2 gal |
| Hydraulic system (including tank) | 310 L | 81.9 gal | |
| DEF tank | 41 L | 10.8 gal | |
| Working Ranges and Forces | Maximum digging depth | 7,160 mm | 23’6″ |
| Maximum reach at ground line | 10,600 mm | 34’9″ | |
| Maximum cutting height | 10,020 mm | 32’10” | |
| Maximum loading height | 7,030 mm | 23’1″ | |
| Maximum vertical wall digging depth | 5,950 mm | 19’6″ | |
| Bucket Specifications | GDX bucket capacity | 1.20 m3 | 1.57 yd3 |
| Bucket tip radius | 1,580 mm | 5’2″ |
If you still have any other questions of Used CAT 330 Excavator For Sale, please leave me message or send us enquiry directly!
| Excavadora usada | Oruga: 305, 306, 307, 312, 313, 315, 318, 320, 321, 323, 325, 326, 329, 330, 336, 340, 345, 349 (de B a D y el último modelo de la serie GC) Komatsu: PC20, PC30, PC35, PC55, PC60, PC70, PC100, PC120, PC130, PC160, PC200, PC210, PC220, PC230, PC240, PC270, PC300, PC350, PC360, PC400, PC450, PC490. Hitachi: EX60, EX100, EX120, EX200, EX300, ZX55, ZX60, ZX70, ZX120, ZX200, ZX240, ZX270, ZX300, ZX350, ZX470. Kobelco: SK50, SK55, SK70, SK75, SK135, SK200, SK210, SK230, SK250, SK260, SK350 Doosan: DH55, DH60, DH80, DH150, DH200, DH220, DH225, DH300, DH420, DH140W, DH150W, DH210W Hyundai: R60, R80, R150, R215, R225, R265, 210W-9S volvo: EC55, EC60, EC80, EC140, EC210, EC240, EC290, EC360, EC380, EC460, EC480 |
| Cargador de ruedas usado | GATO: 910, 936, 938, 950G, 966H, 972, 980(De C a H) Komatsu: WA300, WA320, WA350, WA380, WA400, WA420, WA450, WA470, WA500, WA600 ODS: LG936, LG953, LG956, LG958, LG968 LIUGONG: 850H, CLG856H hyundai: 130w, 150w, 200, 210, 220, 225, 290, 305 y más. |
No importa si necesita excavadoras o cargadoras para obras de construcción, proyectos de excavación u otros fines de ingeniería, tenemos las opciones adecuadas. Nuestros productos se someten a una renovación profesional, lo que garantiza que se entreguen en buenas condiciones de funcionamiento. No dude en contactarnos en cualquier momento para obtener información y consultas más detalladas.
Nuestras máquinas se han exportado a más de 30 países. Al ofrecer una gama de métodos de entrega adaptados a sus necesidades, HIOSEN garantiza que su maquinaria se entregue de forma rápida, segura y rentable. Ya sea que necesite la protección de contenedores, la eficiencia del envío de carga a granel, la conveniencia del transporte Ro-Ro o la flexibilidad del envío en estantes planos, tenemos la experiencia y los recursos para satisfacer sus necesidades de transporte con precisión y confiabilidad. Asóciese con HIOSEN para obtener soluciones de entrega eficientes que mantengan sus proyectos en marcha y sus operaciones funcionando sin problemas. Contáctenos ahora para obtener una solución para sus proyectos.
Nos sentimos honrados de haber dado la bienvenida a numerosos clientes para que visiten nuestra fábrica. Al experimentar nuestros procesos de producción y control de calidad de primera mano, obtuvieron una visión más profunda de nuestras capacidades profesionales y nuestro servicio excepcional. Cada visita no solo ha fortalecido la confianza y la colaboración entre nosotros y nuestros clientes, sino que también ha demostrado nuestra posición de liderazgo y experiencia técnica en la industria. A continuación se muestran algunos aspectos destacados y comentarios genuinos de las visitas de nuestros clientes. Bienvenido a aprender más.
Nuestros clientes’ La satisfacción es la piedra angular de nuestro éxito. Después de comprar nuestra maquinaria, muchos de nuestros clientes han compartido sus experiencias, elogiando el rendimiento, la confiabilidad y el valor que nuestros productos aportan a sus proyectos.
