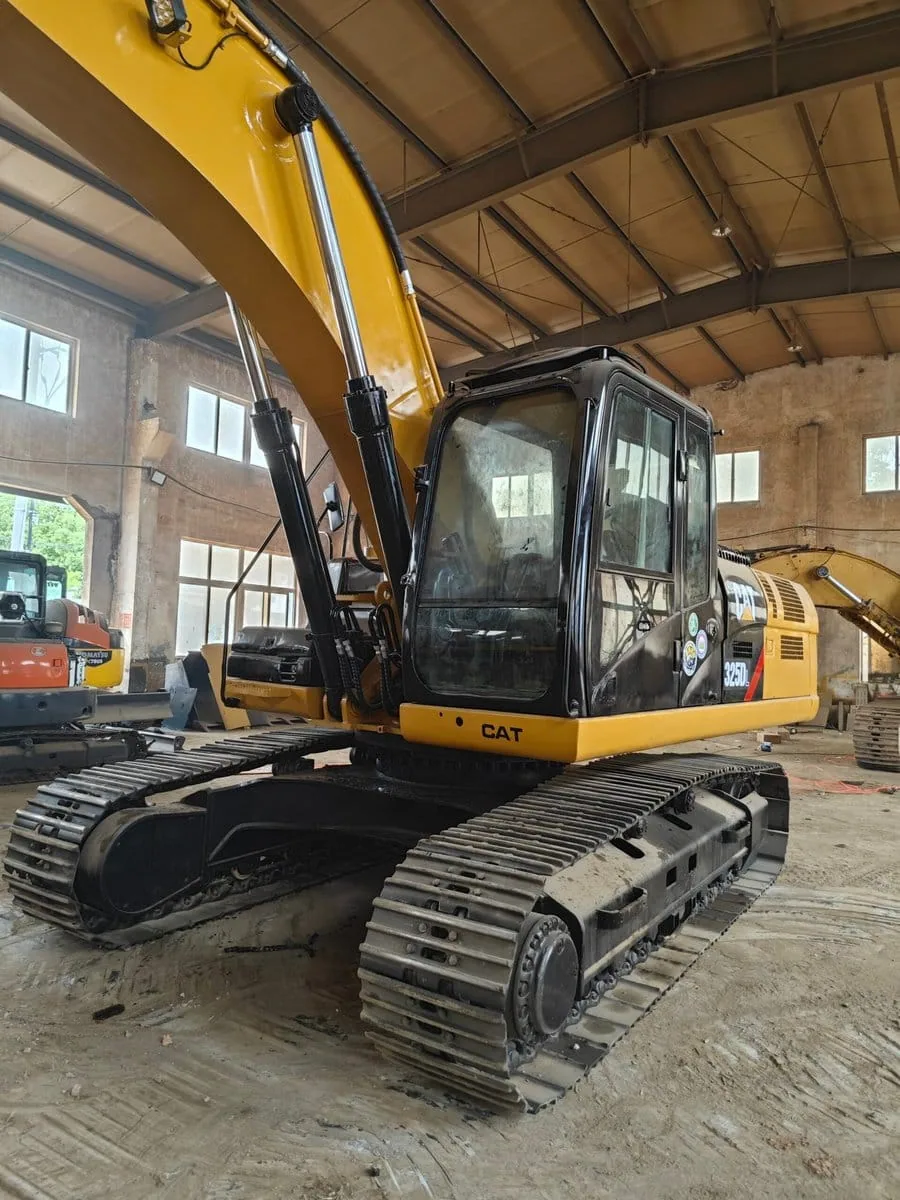

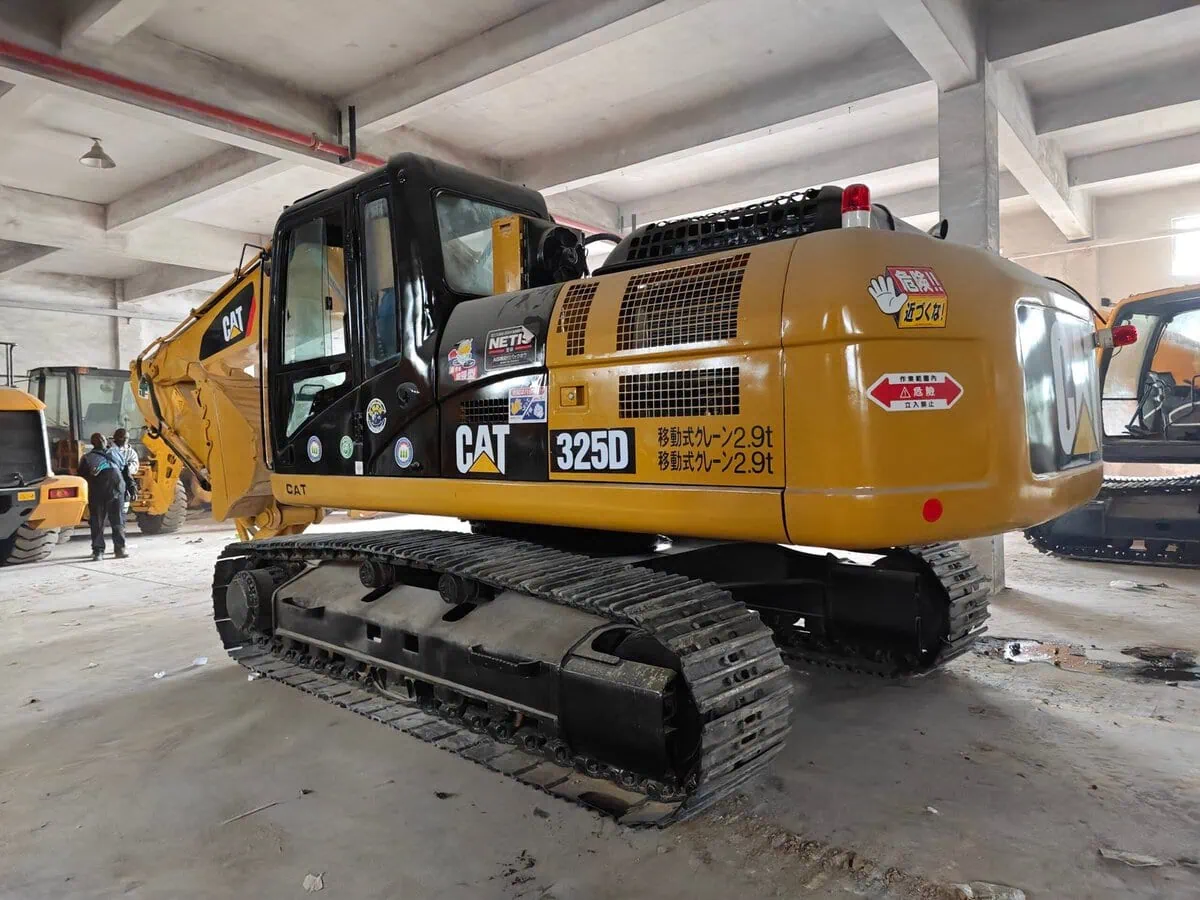

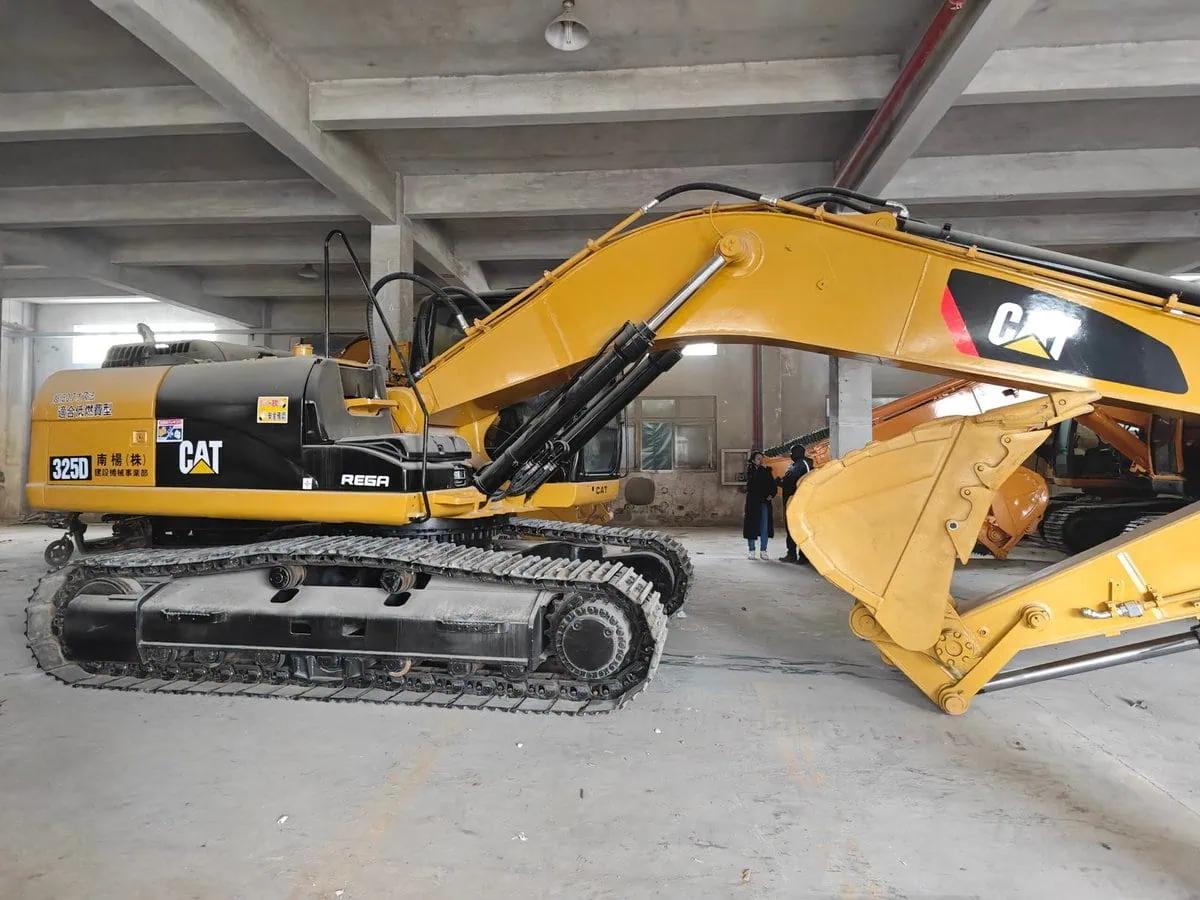

Detailed specification table for Used CAT 325 Excavator For Sale:

Specification Description
Engine Power 128.5 kW (172 hp) 22
Operating Weight 22,800 kg (50,300 lb) – 27,600 kg (60,800 lb) 22
Engine Model Cat C4.4
Bore and Stroke 105 mm x 127 mm (4 in x 5 in) 22
Displacement 4.40 L (269 in³) 22
Net Power Tested per ISO 9259, rated speed at 2,200 rpm 22
Hydraulic System Main system with maximum flow of 429 L/min (× 2 pumps), maximum pressure for equipment normal operation is 35,000 kPa (5,075 psi), and for lift mode is 38,000 kPa (5,510 psi) 22
Swing Mechanism Swing speed of 11.12 rpm, maximum swing torque of 82 kN·m (60,300 lbf-ft) 22
Fuel Tank Capacity 313 L (82.7 gal) 22
Bucket Capacity GD bucket with 0.9 m³ (1.18 yd³) capacity 22
Boom and Stick Reach Boom reach of 5.7 m (18’8″), stick reach of 2.9 m (9’6″) 22
Maximum Digging Depth 6,600 mm (21.7 ft) 22
Maximum Reach at Ground Level 9,670 mm (31.7 ft) 22
Cutting Height Maximum cutting height of 10,930 mm (35.9 ft) 22
Loading Height Maximum loading height of 8,000 mm (26.2 ft), minimum loading height of 3,080 mm (10.1 ft) 22
Air Conditioning System Contains refrigerant R134a with a Global Warming Potential of 1430, system contains 0.9 kg of refrigerant which has a CO2 equivalent of 1.287 metric tonnes 22
Cab Options Available in Comfort, Deluxe, and Premium varieties with features such as ROPS, seat suspension, and climate control 22
