The China Used Hyundai 300 Excavator Price is a long-reach excavator designed for high performance and reliability. Here is a detailed description of its features and specifications:

1. Overview:
   • Hyundai excavators are known for their fast cycle speeds, impressive hydraulic power, and precision control. The HX series, including the HX300LR, features eco-friendly, high-performance engines that meet Tier 4 Final emission requirements. The robust upper and lower frame structure can endure external shock and heavy workloads for many thousands of hours. The operator’s cab is designed with convenient clustering of electronic controls and monitoring functions, resulting in improved operator accuracy and efficiency.3
2. Reliability & Durability:
   • Hyundai construction equipment is precision designed with trusted and proven components and systems from leading OEMs. The HX300L is designed to be rugged and reliable for longer uptime, reduced operating cost, and improved productivity.3
3. Performance:
   • The China Used Hyundai 300 Excavator Price features variable power control, allowing for optimal performance in various operating conditions. The excavator is equipped with a 10.2 m (33′ 6″) boom and a 7.85 m (25′ 9″) arm, providing a maximum digging reach of 18.51 m (60′ 9″) and a maximum digging depth of 14.82 m (48′ 7″).4
4. Specifications:
   • Operating weight: 33,070 kg (72,910 lb)
   • Bucket capacity (SAE heaped): 0.52 m³ (0.68 yd³)
   • Overall length: 14.56 m (47′ 9″)
   • Overall width, with 800 mm shoe: 3.4 m (11′ 2″)
   • Ground clearance of counterweight: 500 mm (1′ 8″)
   • Overall height of cab: 3.34 m (10′ 11″)4
5. Engine:
   • The HX300LR is powered by a Cummins QSB6.7 engine. This 4-cycle turbocharged, charge air cooled diesel engine has a displacement of 6700 cc (409 cu in) and a compression ratio of 17.3:1. It delivers a rated net horsepower of 230 Hp at 1950 rpm and a maximum torque of 100.9 kgf·m (729.8 lbf·ft) at 1500 rpm.4
6. Hydraulic System:
   • The main pump is a variable displacement tandem axis piston pump with a capacity of 2 x 140 cc/rev and a maximum pressure of 350 kgf/cm² (4980 psi). The hydraulic system also includes a fixed displacement gear pump and an axial piston motor for efficient operation.4
7. Cylinder and Shovel:
   • The China Used Hyundai 300 Excavator Price is equipped with a boom cylinder, arm cylinder, and bucket cylinder. The boom cylinder has a diameter of 140 mm and a length of 1465 mm, while the arm cylinder has a diameter of 150 mm and a length of 1765 mm. The bucket cylinder has a diameter of 135 mm and a length of 1185 mm.4

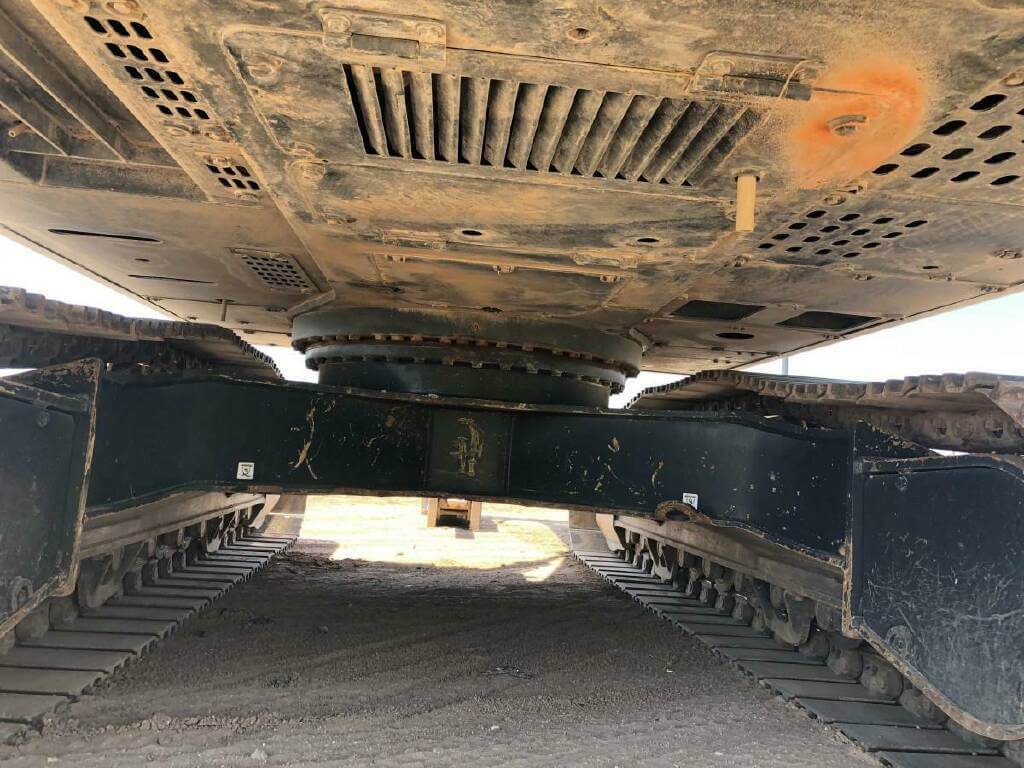

8. Track System:
   • The undercarriage features a track gauge of 3400 mm (11′ 2″) and a track shoe width of 800 mm (32″). The ground pressure is 0.48 kgf/cm² (6.83 psi), ensuring stability and reduced ground disturbance.4
9. Bucket Selection Guide:
   • The China Used Hyundai 300 Excavator Price can be equipped with various bucket capacities, including 1.27 m³ (1.66 yd³), 1.50 m³ (1.96 yd³), 1.73 m³ (2.26 yd³), and 1.85 m³ (2.42 yd³). The choice of bucket depends on the type of work being done and the specific requirements of the job site.4

This comprehensive overview of the China Used Hyundai 300 Excavator Price highlights its advanced features, robust design, and high performance capabilities, making it a reliable choice for various construction and excavation tasks.
